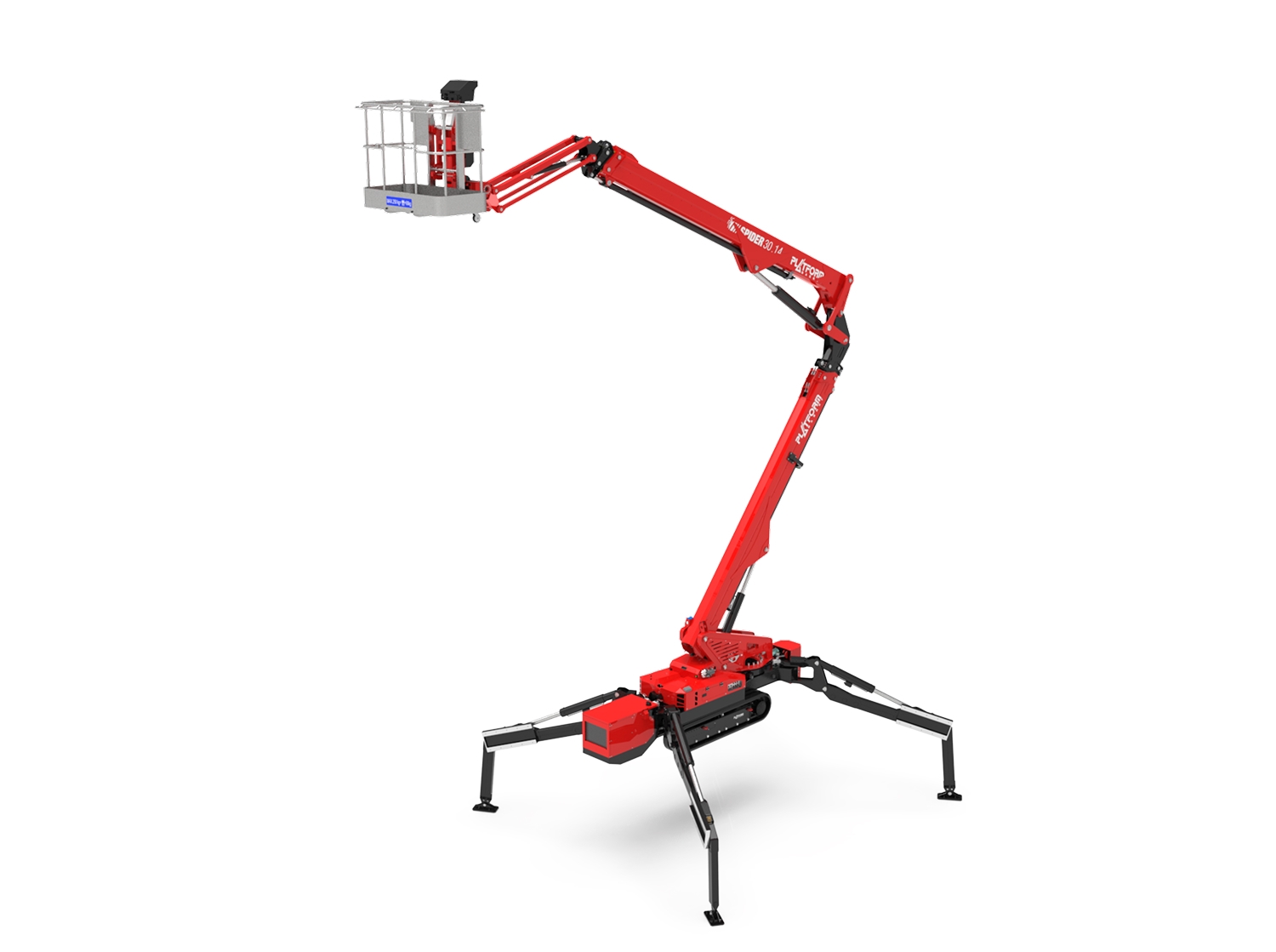

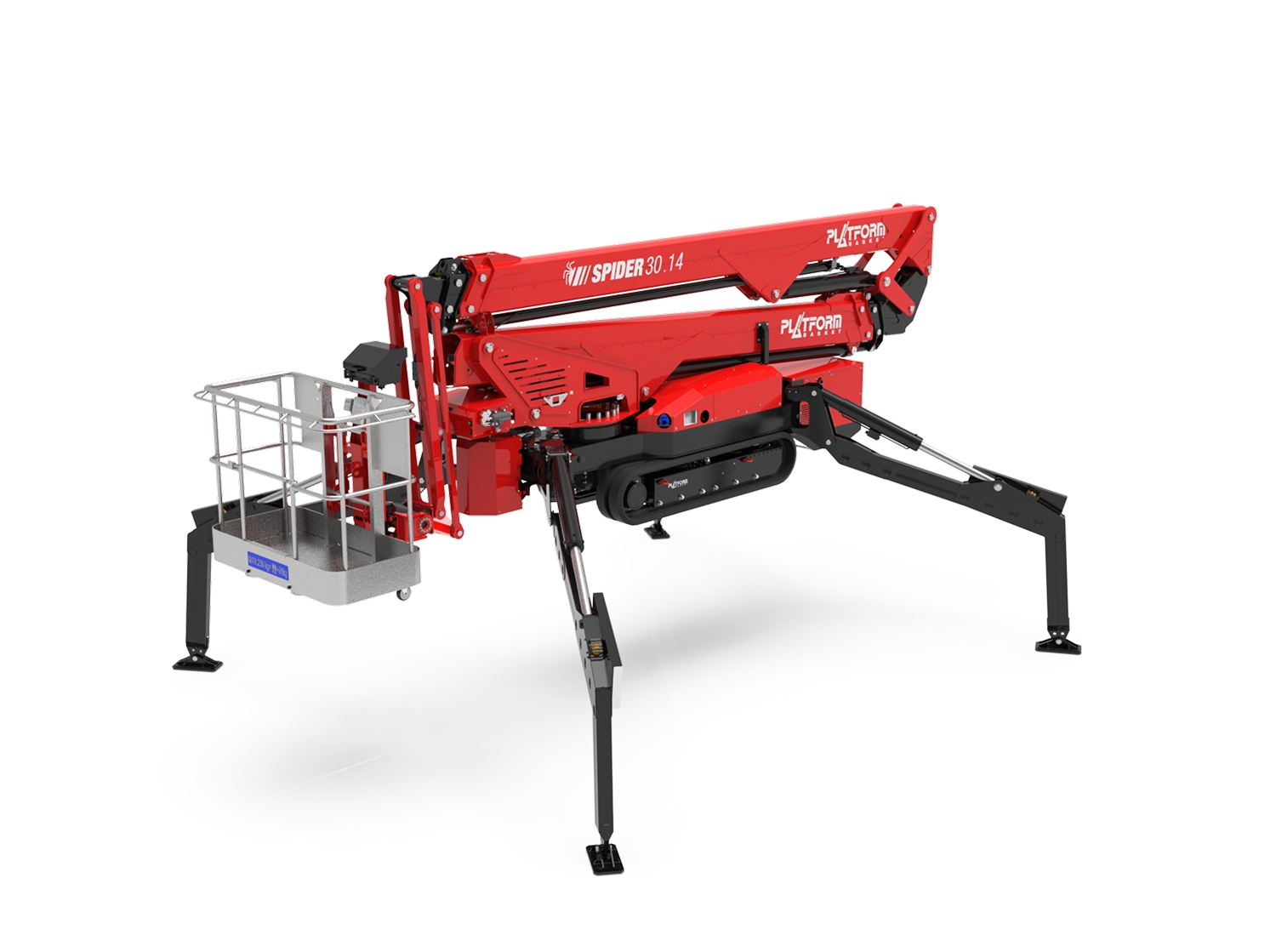

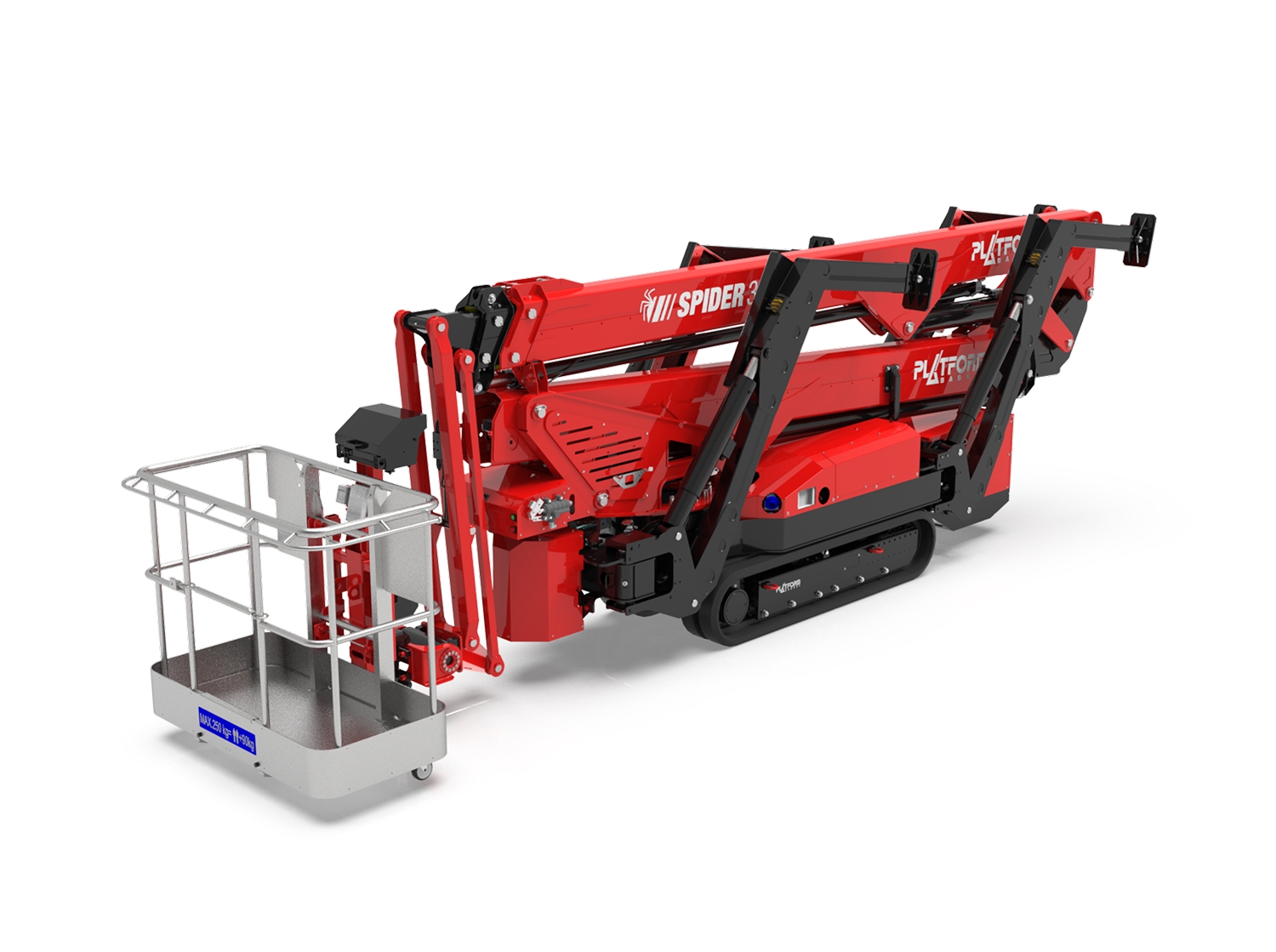

Spider 30.14

Compact, High-Reach Tracked Aerial Platform

• Maximum working height: 30.4 m
• Maximum lateral outreach: 13.6 m
• Basket capacity: up to 250 kg
• Basket rotation: ±80°
• Turret rotation: ±200°
• Compact, articulated tracked design with jib and double pantograph
• Lightweight build: under 4,500 kg – easy to transport on trailers
• Automatic stabilization system with 3 configurations (narrow, wide, and extra-wide for self-loading)
• Proportional and simultaneous remote-controlled movements for precision and smooth operation
• Available power options: diesel, electric, or hybrid (Kubota D902 engine or 48V electric motor)
• Anti-collision and anti-intrusion systems in the basket for enhanced safety
• Optional interchangeable winch for material lifting
• Wide range of accessories: anemometer, intercom, non-marking tracks, biodegradable oil
