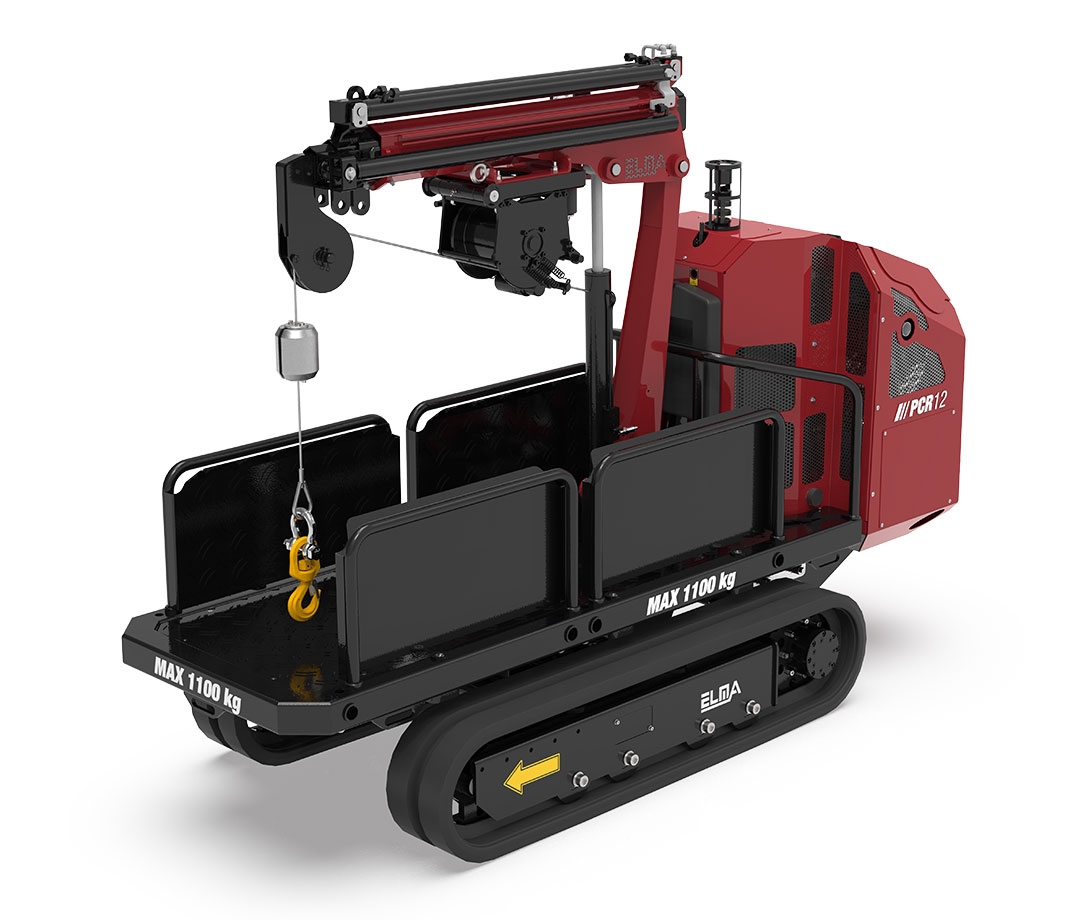

The PCR12 is a crawler vehicle without stabilizers and with a platform load capacity of 1.1T and a crane of 1.2 Tm, plus the option of a winch or other features such as a glass installation system.

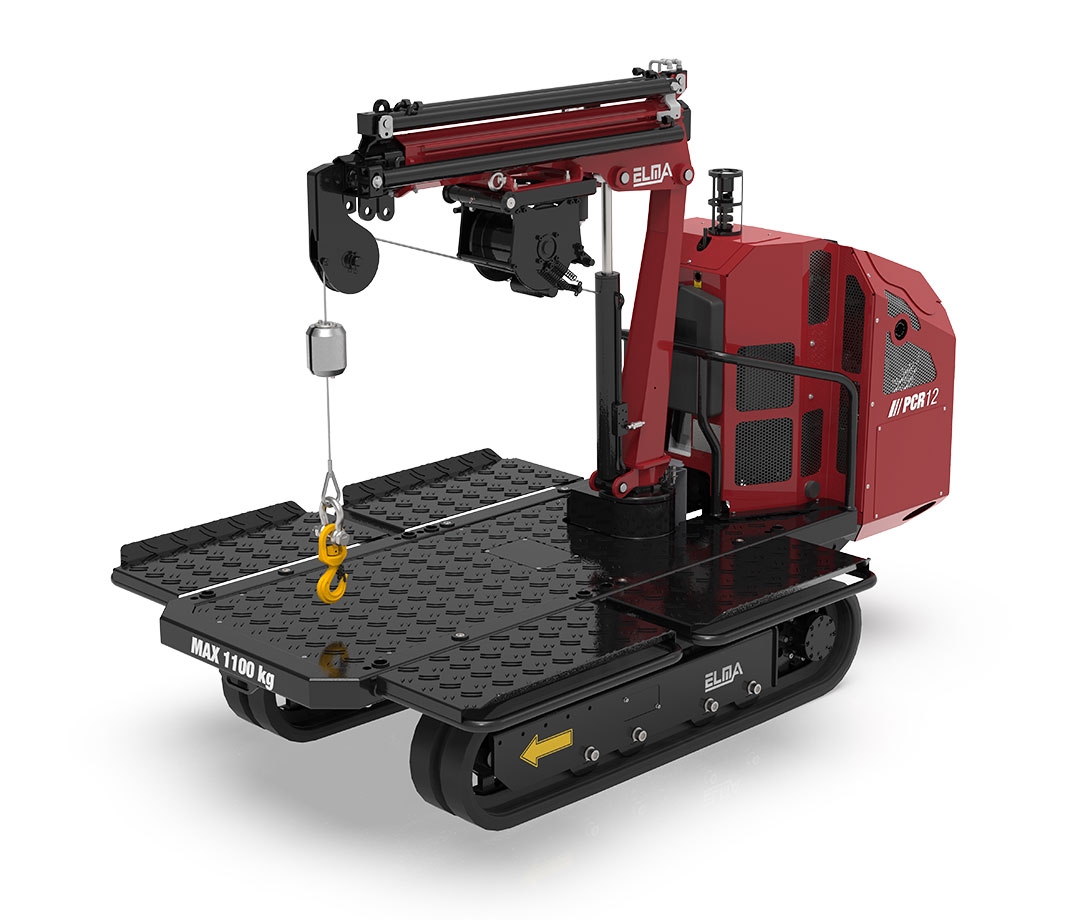

• Multifunctional crane with a wide opening angle, lifting capacity of 1.2 Tm up to 5m in height and 4m outreach. • Transport platform with two configurations: closed to pass through standard doors, or open to maximize the usable area. • Pick-and-carry movement: translation with loads up to 250 kg. • Available in two motorization versions: gasoline + 230 Vac electric motor or full - electric with 48Vdc 110Ah lithium -ion batteries. • Standard remote control for ease of use and safety. • Compatible with accessories such as glass installation systems.
The PCR12 is designed to be a versatile and innovative machine, capable of combining essential functions for various applications. Its crane, with a lifting capacity of 1.2 Tm, reaches a height of 5 meters and offers an outreach of 4 meters, allowing precise handling and positioning of even heavy loads. Another key feature is the transport platform, designed with two configurations: closed, to allow passage through standard doors, or open, to maximize the usable area. This makes the PCR12 ideal for operations in both confined spaces and open environments. The machine also stands out for its pick-and-carry movement, enabling load translation with weights up to 250 kg. Available in two versions, it offers a gasoline engine + 230 Vac electric motor or a full-electric configuration powered by 48Vdc 110Ah lithium-ion batteries, providing a sustainable and high-performance choice. To ensure safety and ease of use, this model comes with a standard remote control, allowing precise control during every operation. The PCR12 is also compatible with various tools, such as glass installation systems, making it an extremely versatile solution for multiple applications.
TECHNICAL SPECIFICATIONS
STD
E
A
m
0,79
B
m
2,52
C
m
1,24
D
m
1,3
E
m
1,18
F
m
0,33
G
m
0,47
H
m
0,85
I
m
1,51
L
m
1,54
M
m
1,68
N
m
2,7
a1
°
31
a2
°
39
b
°
25
Crane maximum moment
Tm
1,2
Maximum horizontal working radius
m
3,41
Maximum movable load
kg
990
Crane arm working angle
°
+70
-30
Crane rotation angle
°
340
Rotation torque
kNm
2,5
Maximum speed of movement
km/h
2,6
Maximum slope capacity
°
25
Maximum operational pressure
bar
190
Maximum capacity crane distributor
l/min
8
Oil reservoir capacity
l
22
Single winch reach (optional)
kg
cable
600
⌀7mm - 46m
WEIGHTS
STD
E
Standard machine weight
kg
1200
1240
Track ground pressure
kg/cm²
0,12
0,13
FUEL
STD
E
PETROL ENGINE
8,7kW/11,7HP @3600 rpm
●
-
230 Vac ELECTRIC MOTOR (OPTIONAL)
2,2kW/3HP 230Vac/50Hz
●
-
ELECTRIC TRACT. MOTOR
3,5kW/5HP 48Vdc
-
●
ELECTRIC CRANE MOTOR
2,5kW/3,5HP 48Vdc
-
●
BATTERY TYPE
48Vdc 110Ah Lithium Ion
-
●
OPTIONAL:
White tracks
230 Vac electric pump
Single winch reach 600 kg
Electronic kit for control of rotation angle
Working headlamps
Adjustable tracks
Radio control
Mechanical extension 0.8 m
