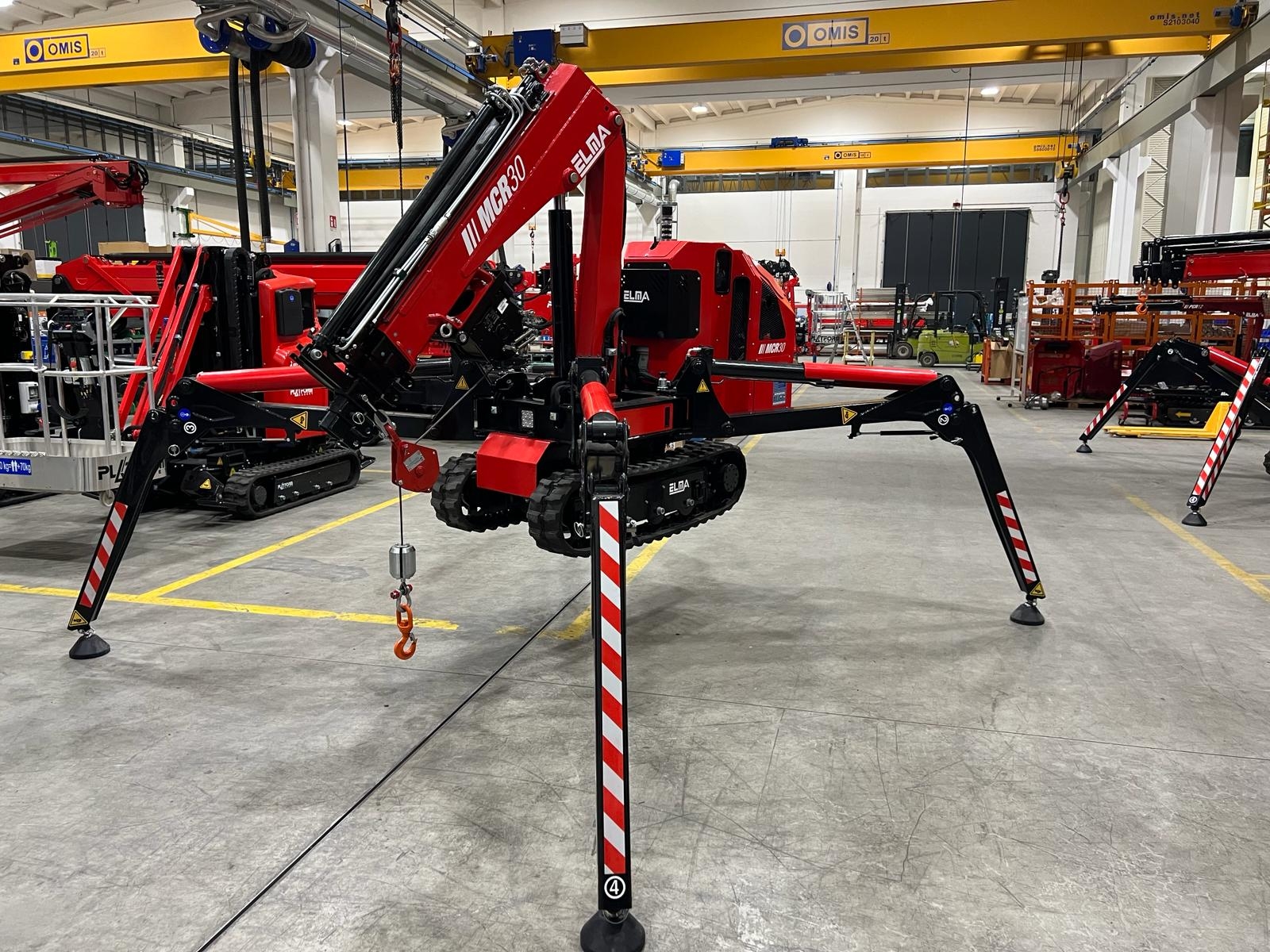

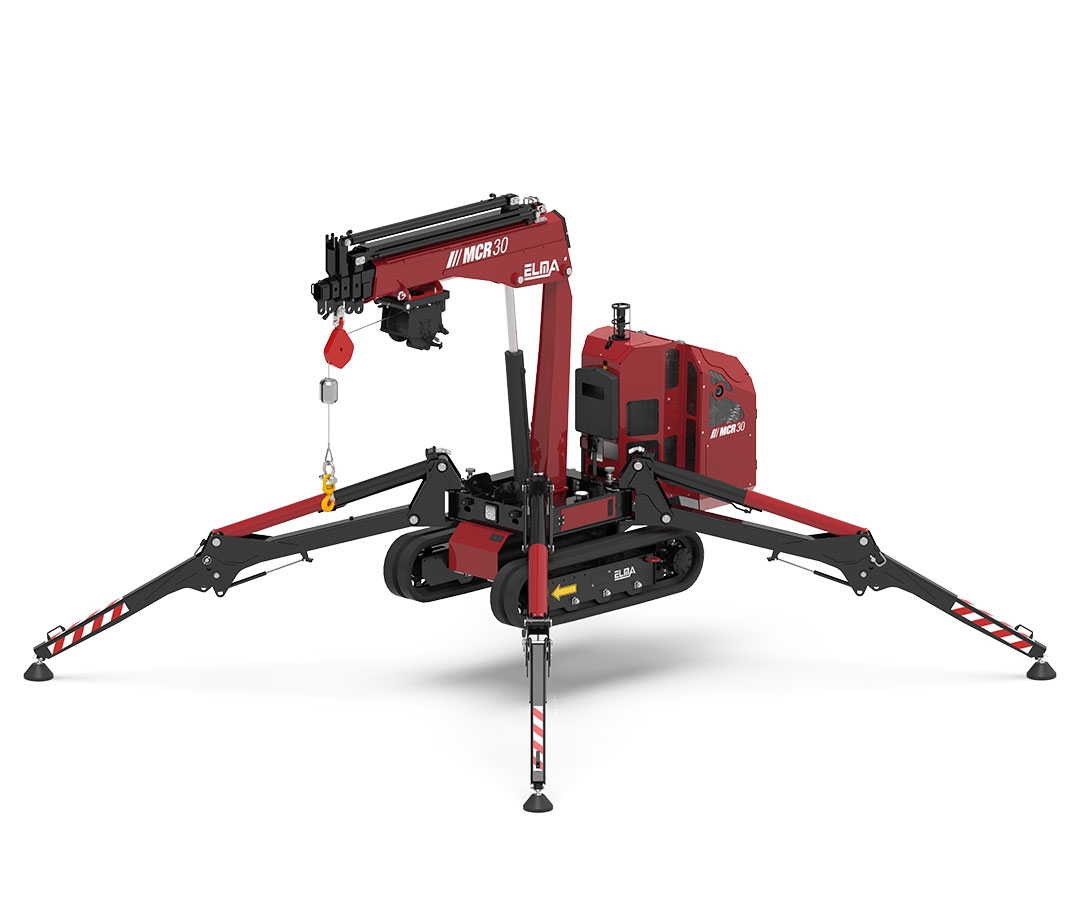

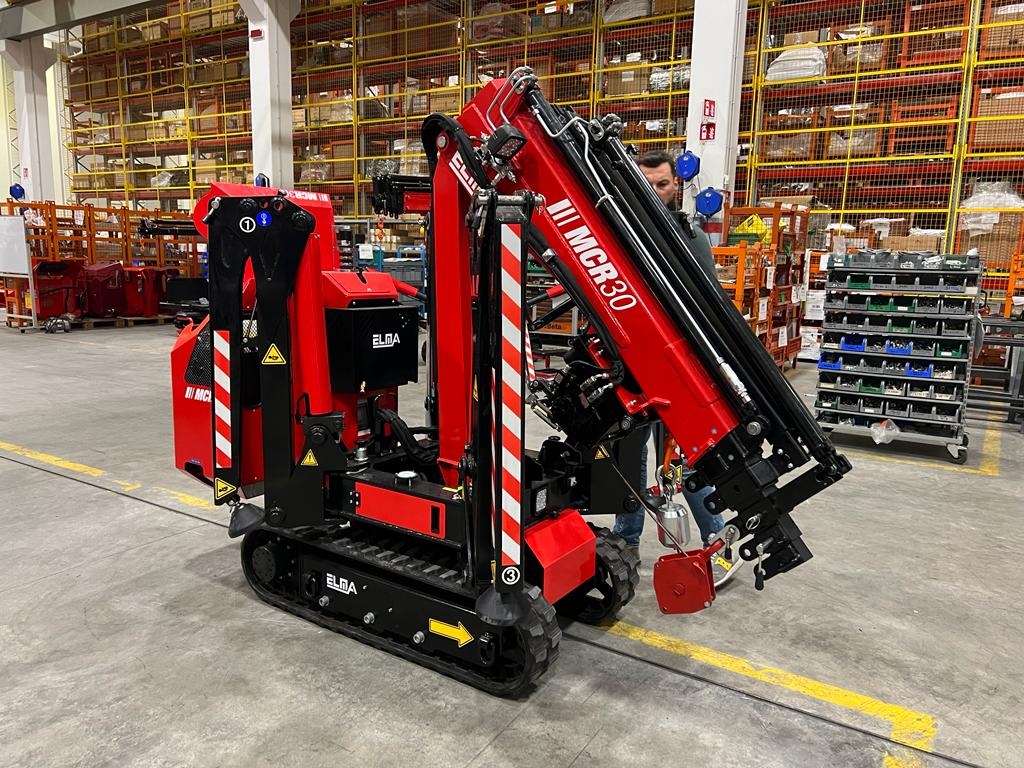

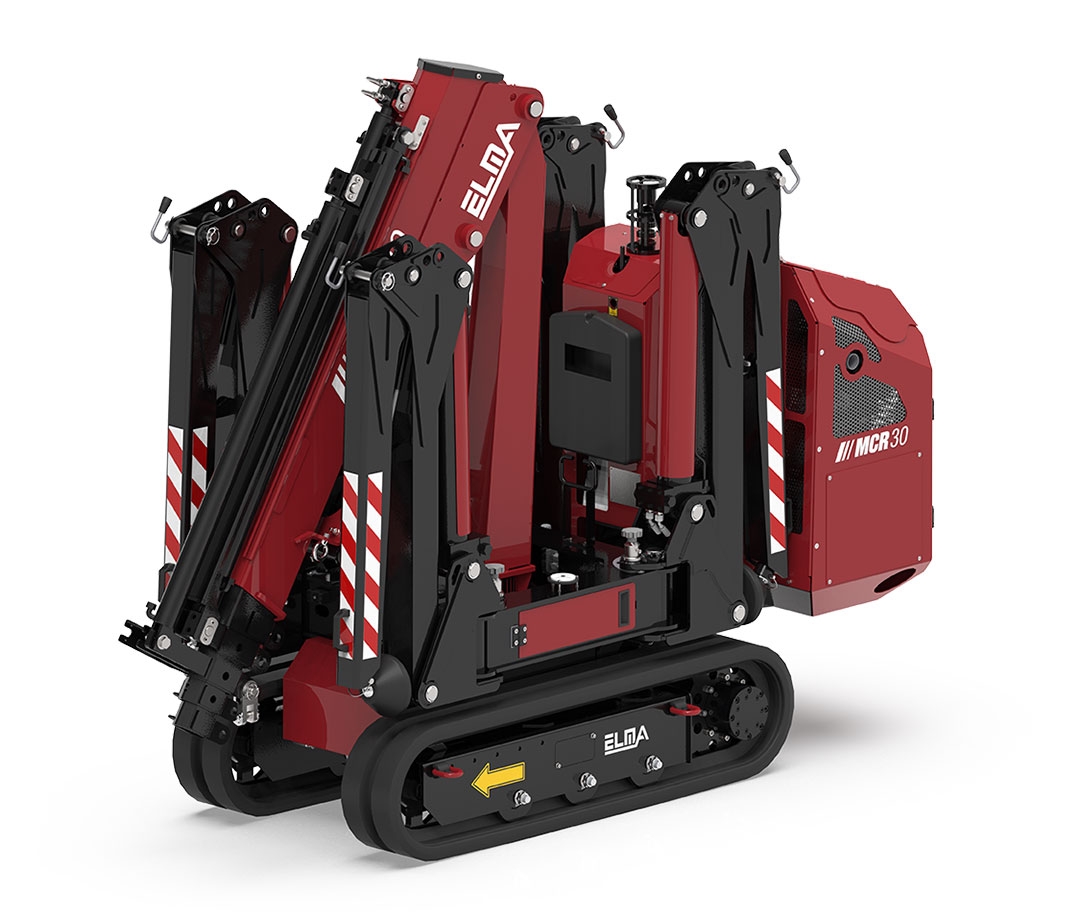

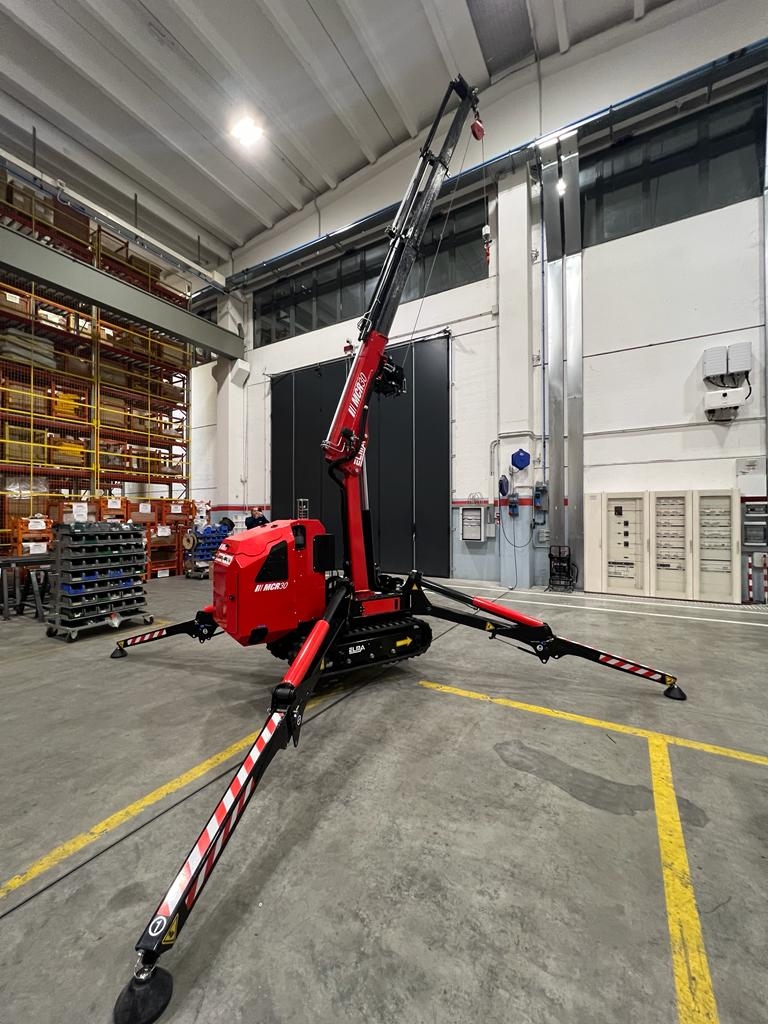

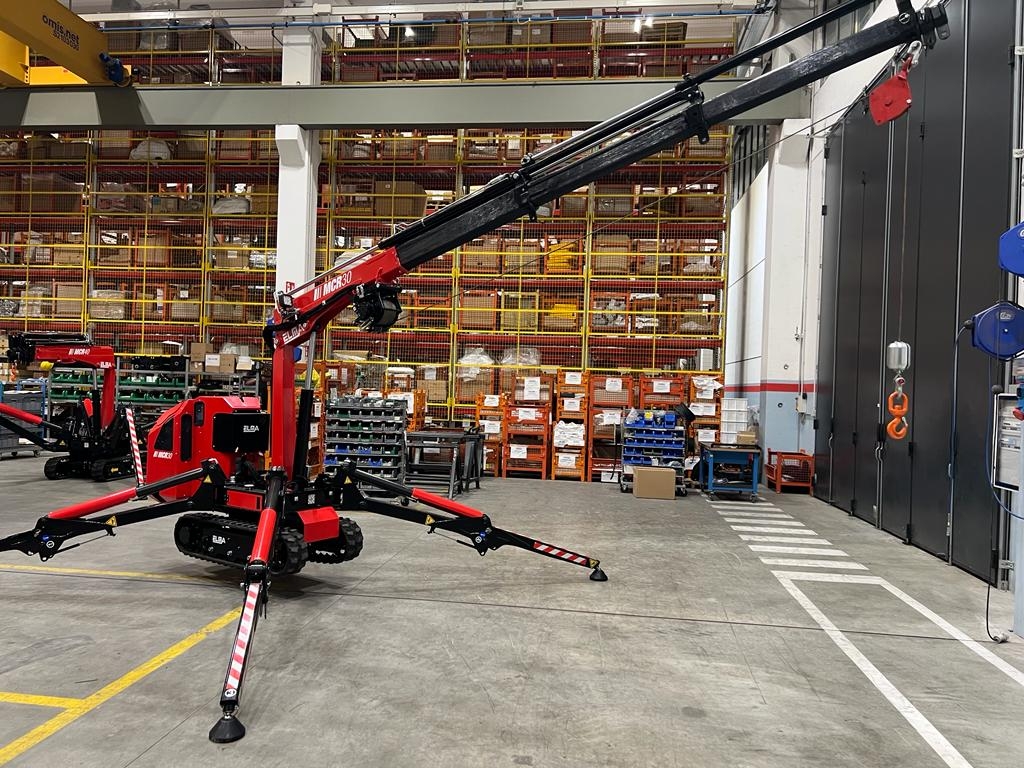

MCR 30 Mini Crane | Diesel & Electric Motor Options

TECHNICAL SPECIFICATIONS		STD
A	m	0,79
B	m	2,22
C	m	1,09
D	m	1,25
H	m	1,87
a1	°	33
a2	°	40
X	m	3,88
Y	m	3,85
X1	m	4,55
Y1	m	0,62
Y2	m	5,19
Crane maximum moment	Tm	3,2
Maximum horizontal working radius	m	4,75
Maximum movable load	kg	995
Crane arm working angle	°	± 80
Crane rotation angle	°	340
Rotation torque	kNm	3,2
Maximum speed of movement	km/h	2,6
Maximum slope capacity	°	25
Maximum operational pressure	bar	190
Maximum capacity crane distributor	l/min	8
Oil reservoir capacity	l	22
Single winch reach (optional)	kg cable	600 ⌀7mm - 46m

WEIGHTS		STD	E
Standard machine weight	kg	1400	1440
Track ground pressure	kg/cm²	0,25	0,26
Maximum load on stabiliser foot	kg	1160

MCR 30
